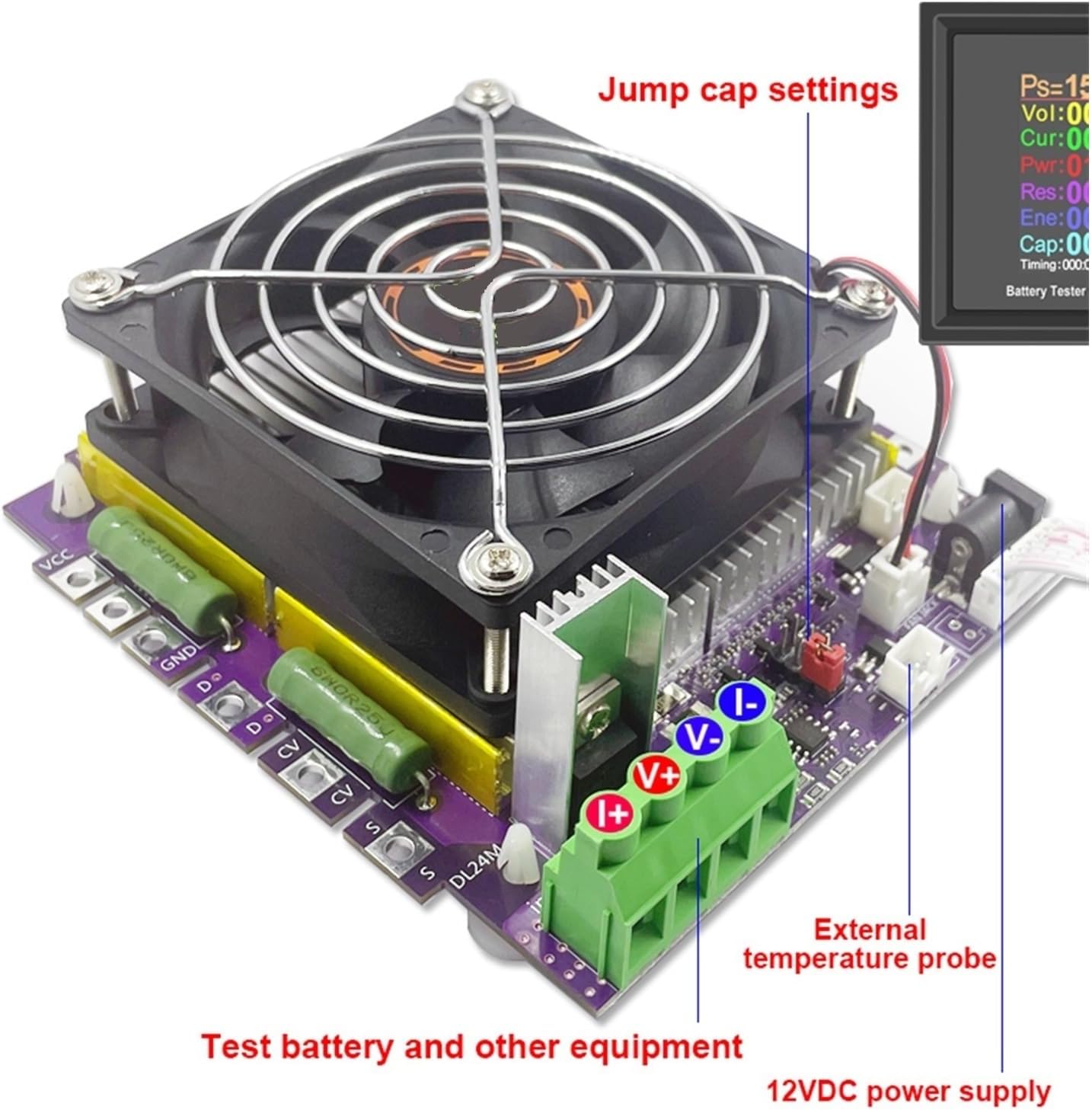

Intelligent Temperature Control DC Power USB Tester Electronic Load Lithium Battery Capacity Discharge Meter(150W B)

Product ParameterElectrical parametersTest voltage：2~200VWorking current：3mA~23A±2A<; 150 W(The actual running current is limited by the maximum power, please adjust the current according to the law of energy conservation)The built-in over-current, over-temperature, over-power safety protection functions, if the protection interface is popped up, please pay attention to the parameter adjustment, shall adjust to the maximum power, and then discharge, you can first slowly and smoothly adjust the preset value in the start and discharge, in order to adjust up to the maximum power for dischargingProduct jumper position and Setting method(150W~600W)(DIY 150W / DIY 300W / DIY 450W / DIY 600W)When product leave the factory, the default is: 150W (the jumper has been set to 150W)When this product is at different powers, you need to set the jumper, please follow the following method to set！<;150W)<;300W)<;450W)<;600W)Two kinds of 1mA or 10mA current test gearOperation method: Long press the "ON/OFF" Button to enter the background, press the "M" Button, select 05 item: Precision of current: O10mA ●1mA, set by "+" or "-"(Tips: Start the test with a minimum of 3mA)Introduction to the key operation of frequently used functions1)Short press the “ON/OFF” button to start and stop, short press the upper left corner of the "M" button to move the cursor and then adjust the corresponding value with the "+/- " button2) Long press the "+/- " button at the same time to clear all accumulated data such as the current capacity, battery time, etc. (Long press the "ON/OFF" button to enter the background ，also can be cleared in the background menu)3) Long press the “M” button and the function mode starts to flash, then short press the “+/-” button to select the function (CC/CV/CR/CP/BRT/PT)4) In

• The built-in over-current, over-temperature, over-power safety protection functions.
• Intelligent temperature control fan.
• Bluetooth connectivity for easy observation.
• Quickly measure the battery.
• Support multiple types of batteries, one machine for multiple purposes, fast identification.
